Foam Double Sided Tape
Description

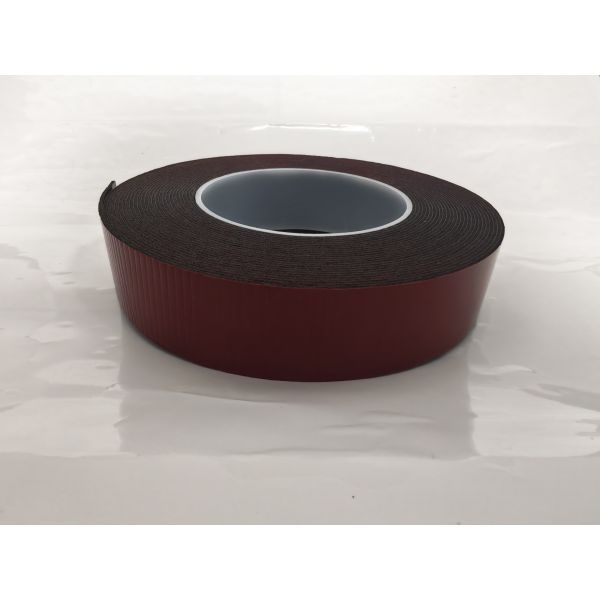

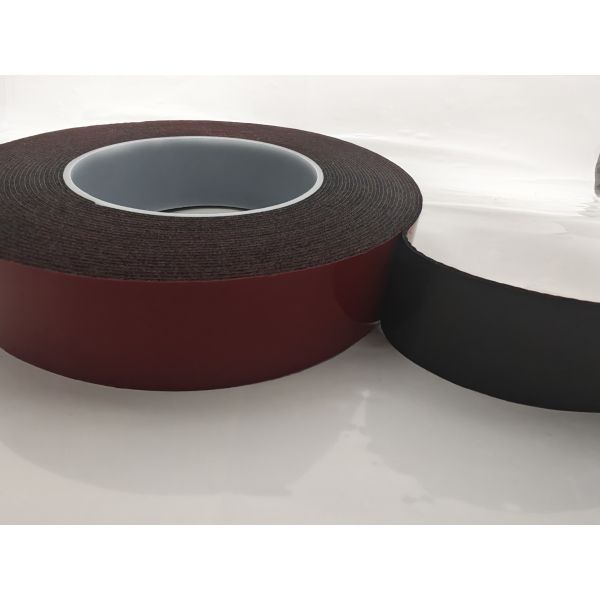

YY1005H-B Series is a 500μm black PE foam double-sided tape with excellent weather resistance, adhesion, sound insulation, sealing, and cushioning properties, suitable for a wide range of applications.
Applications
- Electronic device internal component cushioning and fixing
- Automotive interior trim sealing and sound insulation
- Building curtain wall and door-window sealing
- Household appliance panel bonding and shock absorption
- Packaging material sealing and gap filling
- Industrial equipment vibration and noise reduction
Physical Parameters
| Item |
Specification |
Standard |
| Total Thickness |
500±5μm |
GB/T7125-2014 |
| Adhesion Strength |
≥1000g/25mm (180°) |
GB/T2792-2014 |
| Holding Power |
≥1 h/kg/20mm² |
GB/T4851-2014 |
| Initial Tack |
≤150# |
GB/T4852-2002 |
| Temperature Resistance |
80℃ |
Hot box test |
Company Introduction
Sanfeng Win New Materials (Jiangsu) Co., Ltd. (Sanyifeng), founded in 2010, is a private enterprise integrating R&D, production, and sales of adhesive products. With industry-leading coating technology and a professional R&D team, we specialize in high-temperature resistant tapes, optical protective films, new energy battery blue films, aerogel packaging hot-pressing films, photovoltaic perforated tapes, and backsheets. Our products are widely used in electronics, mobile phone screens, PCB, powder spraying, insulation, die-cutting, printing plastics, battery cell aluminum case wrapping, FPC, new energy, and photovoltaic industries. Equipped with precision coating equipment, a high-purification clean workshop, and a multi-functional composite precision coating production line, we provide customers with R&D, design solutions, and market application feedback, enabling independent mass production services to ensure product quality.
FAQ
-
What is the total thickness of YY1005H-B Series tape?
The total thickness is 500±5μm, in accordance with GB/T7125-2014.
-
What is the temperature resistance of this tape?
It can withstand a temperature of 80℃, tested via the hot box method.
-
What is the adhesion strength of YY1005H-B Series?
The adhesion strength is ≥1000g/25mm (180° peel), conforming to GB/T2792-2014.
-
What are the main performance advantages of this tape?
It has excellent weather resistance, adhesion, sound insulation, sealing, and cushioning properties.
-
In which industry is YY1005H-B Series suitable?
It is suitable for electronics, automotive, construction, household appliances, packaging, and industrial equipment industries.
-
Can Sanfeng Win provide customized production for this product?
Yes, with our multi-functional composite precision coating production line, we can provide R&D, design, and mass production services to meet customer needs.
